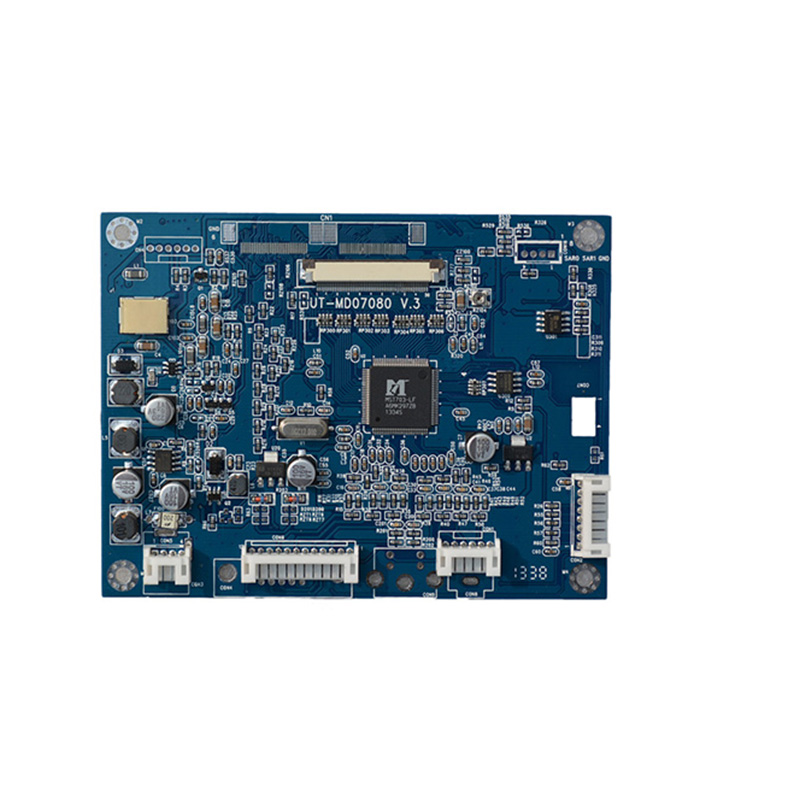

Innolux 7-inch LCD driver board

Main business：Innolux、Boe, Hancai, AU Optronics, LG, Hua Ying, Sharp and other first-line brands of LCD displays provide customers with all-round services. The main specifications include a full range of LCD products from 4.3 inches to 32 inches, and various LCD accessory products can be provided according to customer needs

Online Consult

Download

Product Description

　　This standard applies to shenzhen technology bo electronics co., LTD. Production for: TTL: AT080TN52. EJ080NA - 05 a. EJ080NA - 05 b. AT070TN92. AT070TN94. AT080TN64. AT090TN12. And the inspection of the UT-2660V1.0 driver board for high-resolution screen interface liquid crystal display modules such as LVDS:AT070TN-A2.EJ080NA-04C.

　　2. Product function description

　　2.1 VGA, CVBS, HDMIr video signal input;

　　2.2 Power input: DC +12V

　　2.3 Multi-functional OSD operation

　　2.4 With remote control function (optional)

　　2.5 Automatic shutdown without signal

　　3. Signal input standards

　　3.1 CVBS:1.0Vp-p75Ω

　　3.2 VGA: 800*480, 800*600, 1024*600, 1024*768 (Refresh rate 60-75)

　　3.3 HOMI (General Version 1.2)

　　4. Working environment

　　4.1 Operating temperature: -10℃ to +60℃
